TABLE OF CONTENTS

Physical Specs

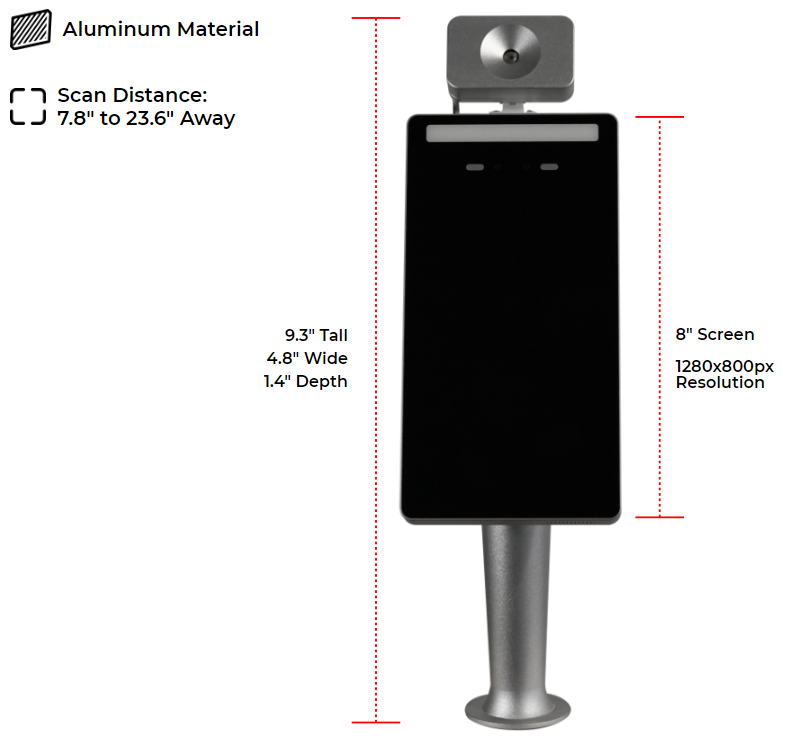

  • Dimensions: 9.3" H x 4.8" W x 1.4" D
  • Weight: 6.39 lbs
  • Color: Silver/Black
  • Material: Aluminum

Display/Sound Specs

  • Screen Size: 8 inch IPS display
  • Resolution: 1280x800px
  • Brightness (nits): 320
  • Touch/non-touch: Touch
  • Number of speakers: 1
  • Visual/hearing impaired features: Both visual and audio readings are used to indicate status

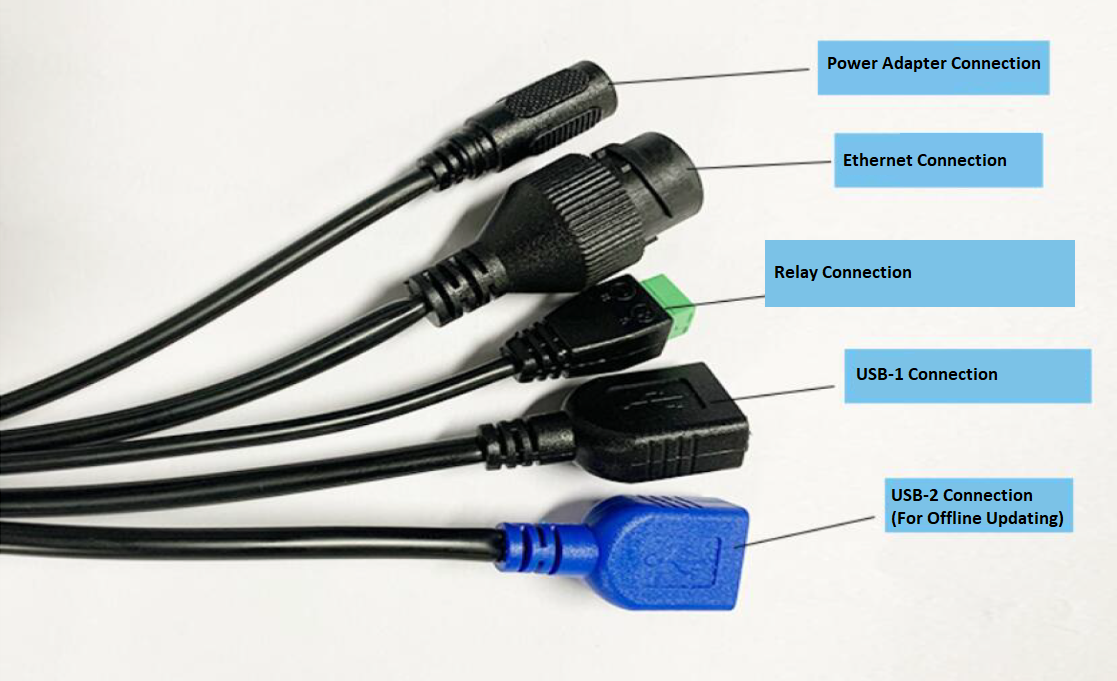

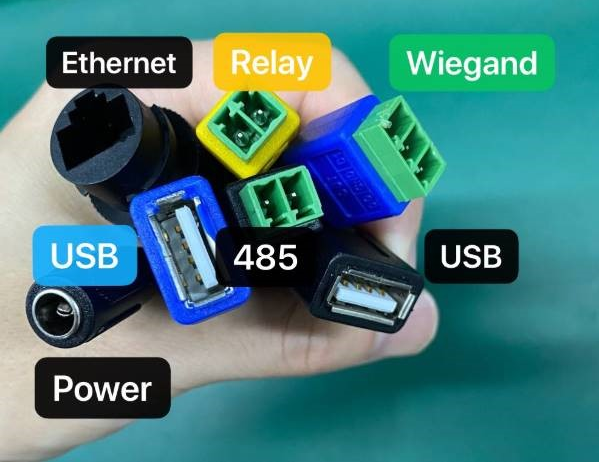

I/O Connections

  • DC Power (Comes with a DC power adapter)

  • RJ45 for LAN (Ethernet)

  • WiFi support

  • 2x USB ports (1x Black, 1x Blue)

Thermal Specs

  • Infrared technology is used for a contactless interaction

  • Temperature accuracy: +/- 0.5 °F

Software Specs

  • Able to read QR codes
  • WiFi and LAN support
  • Ability to support custom integrations with door locks, registration systems and more.

Mounting Specs

  • Movement: With the mount that comes with the device, the device can be tilted forwards or backwards to change the angle of the screen.
  • Capabilities: Wall-mount, Support-stand

CPU/Processor Specs

  • Processor: RK3399, 6 core, 64 bit Processor
  • Memory: 2GB RAM
  • Storage type & capacity: 16GB ROM

Power Specs

  • Voltage: 12V
  • Load (amps or watts): 3A
  • Supply type (wall brick, POE, etc): Power brick
  • Interface/plug: DC

Networking Specs

  • Wired & wireless standards: 802.3u and 802.11 b/g/n
  • Connection type(s): RJ45

Environmental Specs

  • IP Rating: IP54
  • Temperature & humidity tolerances (storage/shipping/operating): -4~158 °F
  • Display scratch resistance: 6H

Miscellaneous

  • Supported OS: Android 7.1
  • Indicator lights: Device has indicator lights that change from white to green/red when performing temperature scans
  • Accessories: 12V power adapter, screws and hex key wrench, aluminium torch bar
